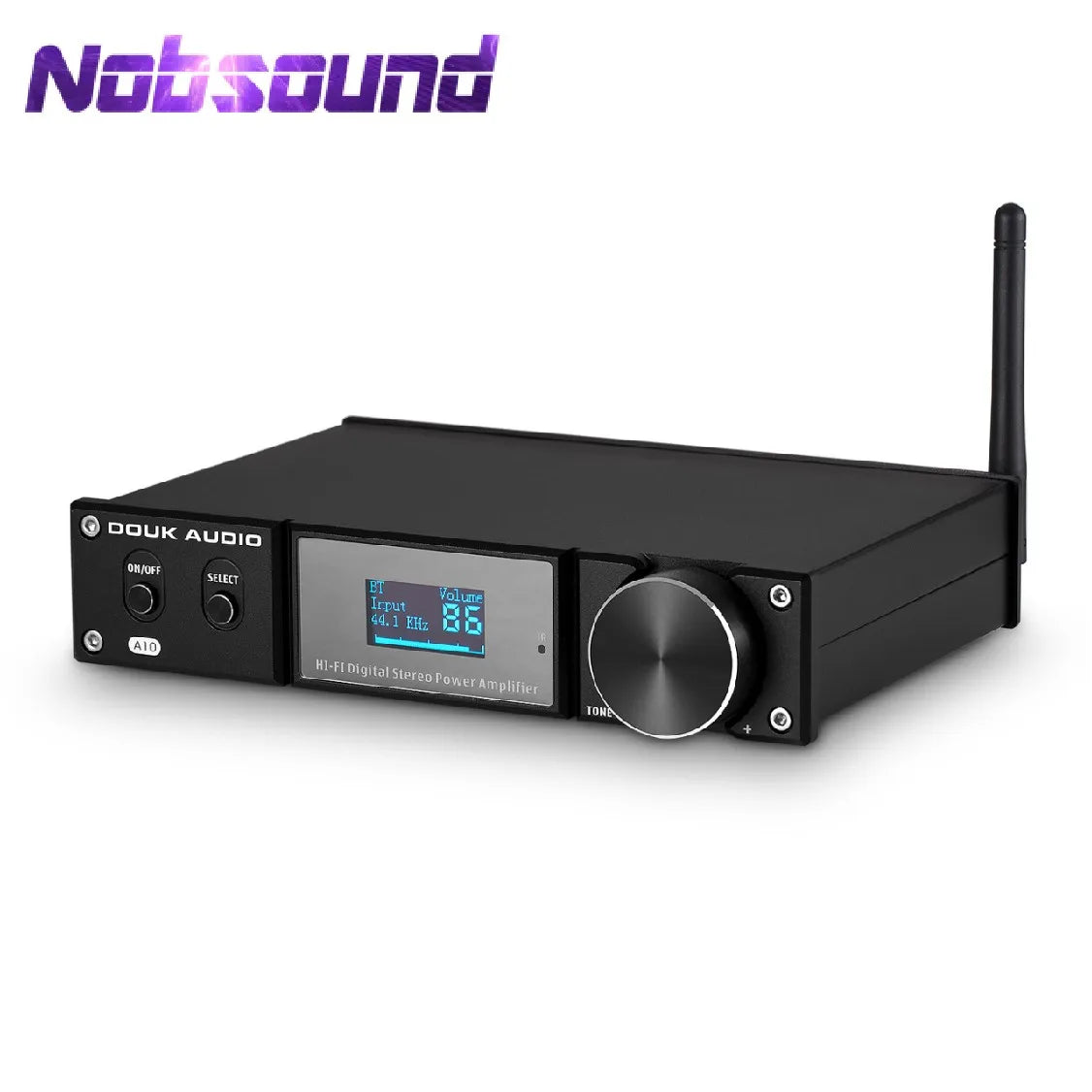

Nobsound A10 HiFi Bluetooth 5.0 Digital Power Amplifier Receiver Subwoofer Amp Stereo USB/OPT/COAX Audio Amp 240W APTX-LL
Nobsound A10 HiFi Bluetooth 5.0 Digital Power Amplifier Receiver Subwoofer Amp Stereo USB/OPT/COAX Audio Amp 240W APTX-LL
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Douk Audio
Channels: 2 (2.0)
DOUK AUDIO Model: A10
Maximum Power Per Channel: NO POWER
Model Number: A10
Origin: Mainland China
Package: Yes

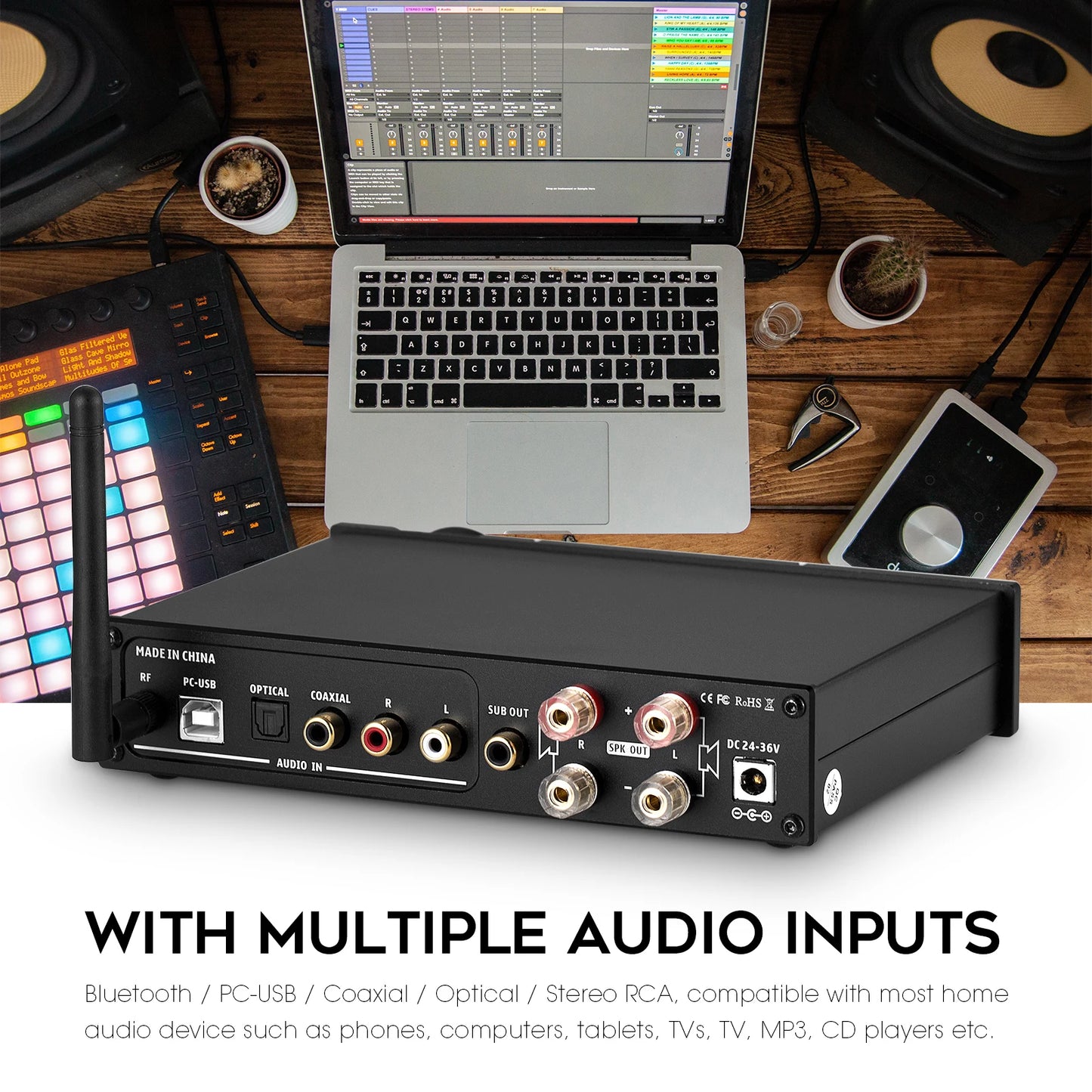

With multiple audio inputs: Bluetooth / PC-USB / Coaxial / Optical / Stereo RCA, compatible with most home audio device such as phones, computers, tablets, TVs, TV, MP3, CD players etc. Bluetooth 5.0 adopting QCC3008 chip supports APTX and APTX-LL lossless transmission, providing wonderful listening experience.
Using classic TAS5508(DSP) + TAS5532A chip, max output power can reach 120W + 120W, equipped with high-quality 32V/5A power supply enough to drive most bookshelf/ computer/ desktop /ceiling /outdoor/ floor-standing speakers. A low frequency output is specially designed to connect active subwoofer, very easily to build 2.1 channel system.
With ±12 dB treble and bass control and EQ effects, the sound is more delicate and the shocking auditory effects make you feel like in the cinema. And with bypass function, can enjoy original HiFi sound, adding much fun and higher playability.

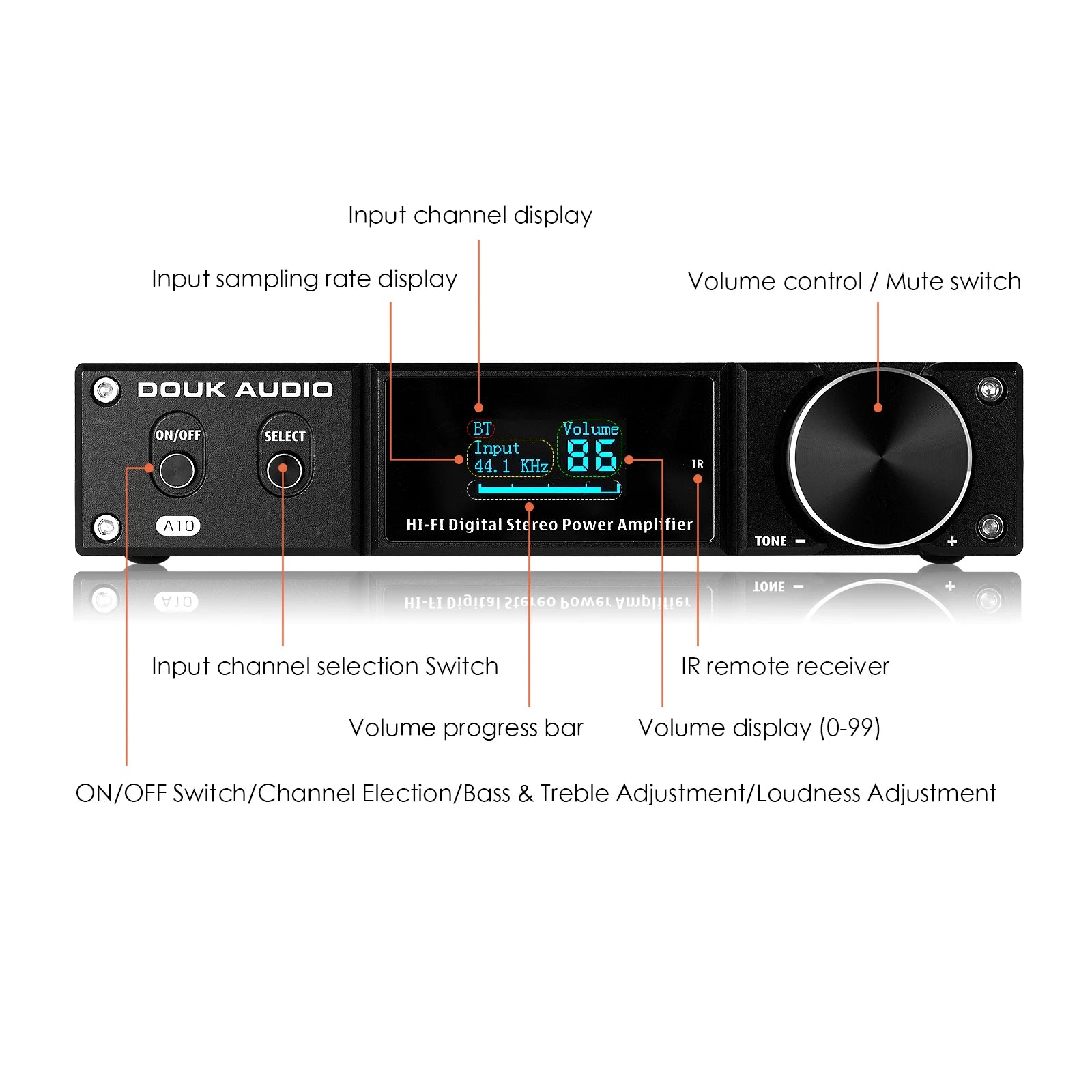

Reasonable curcuit layout and concise wiring, aluminum alloy case and gold-plated terminals, ensure HiFi clear and clean sound, no audible noise even at high power output. Exquisite appearance with large LED display and remote control, very clear to show the working status at real-time and convenient to operate.

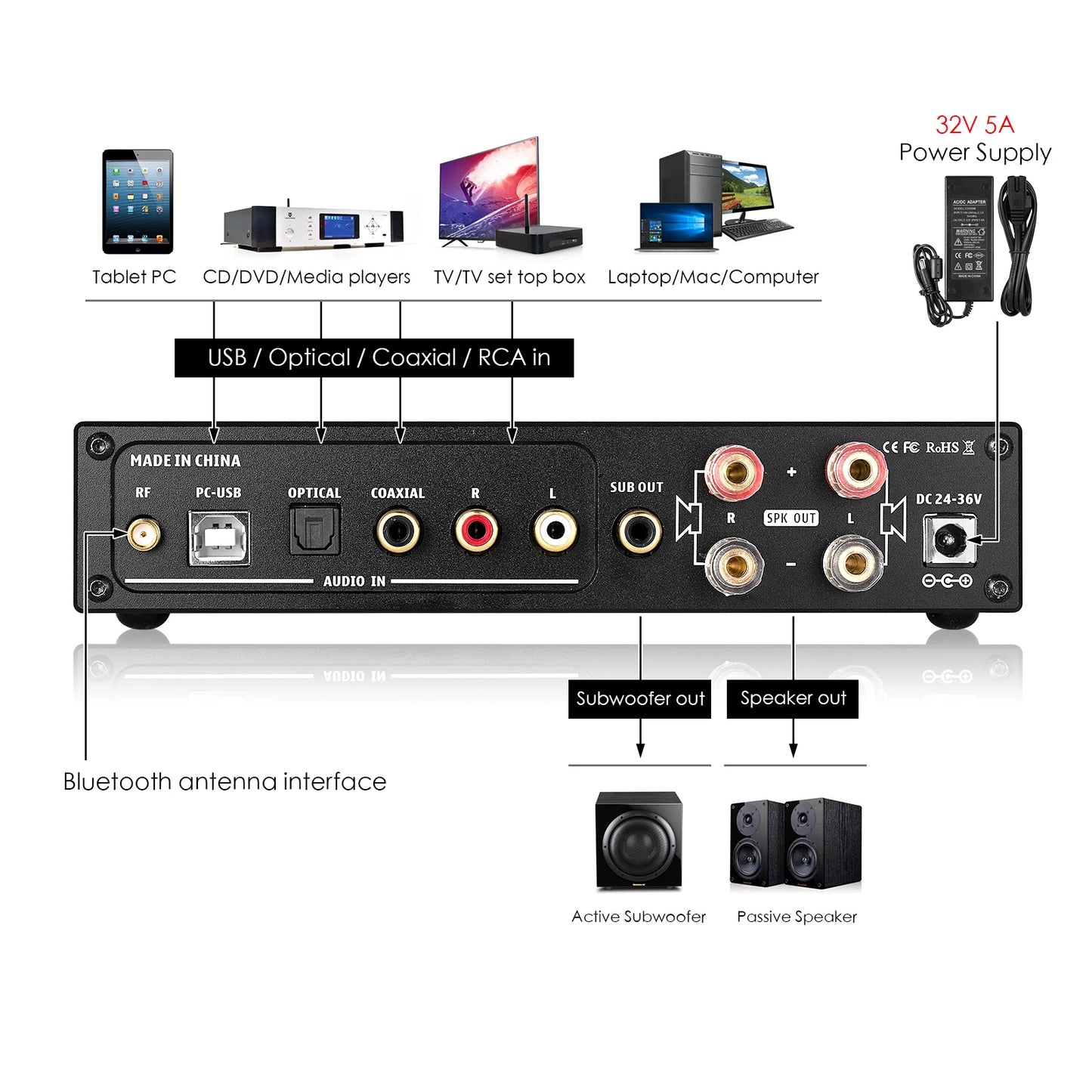

Audio input: Bluetooth 5.0 / RCA / USB / Optical / Coaxial
Audio output: Banana speaker jacks / Low frequency(connect active subwoofer)
PC-USB/Optical/Coaxial input sampling rate: 192K/24Bit
PC-USB System supported: XP/W7/W8/W10/MAC/linux
Working voltage: DC24V-36V
Input Sensitivity: 0.775V
THD: ≤ 0.01%
Frequency Range: 20Hz - 20kHz ( ±3 dB )
SNR: ≥ 105dB
Speaker impedance: 4-8Ω
Max power output: 120W + 120W (4Ω load)

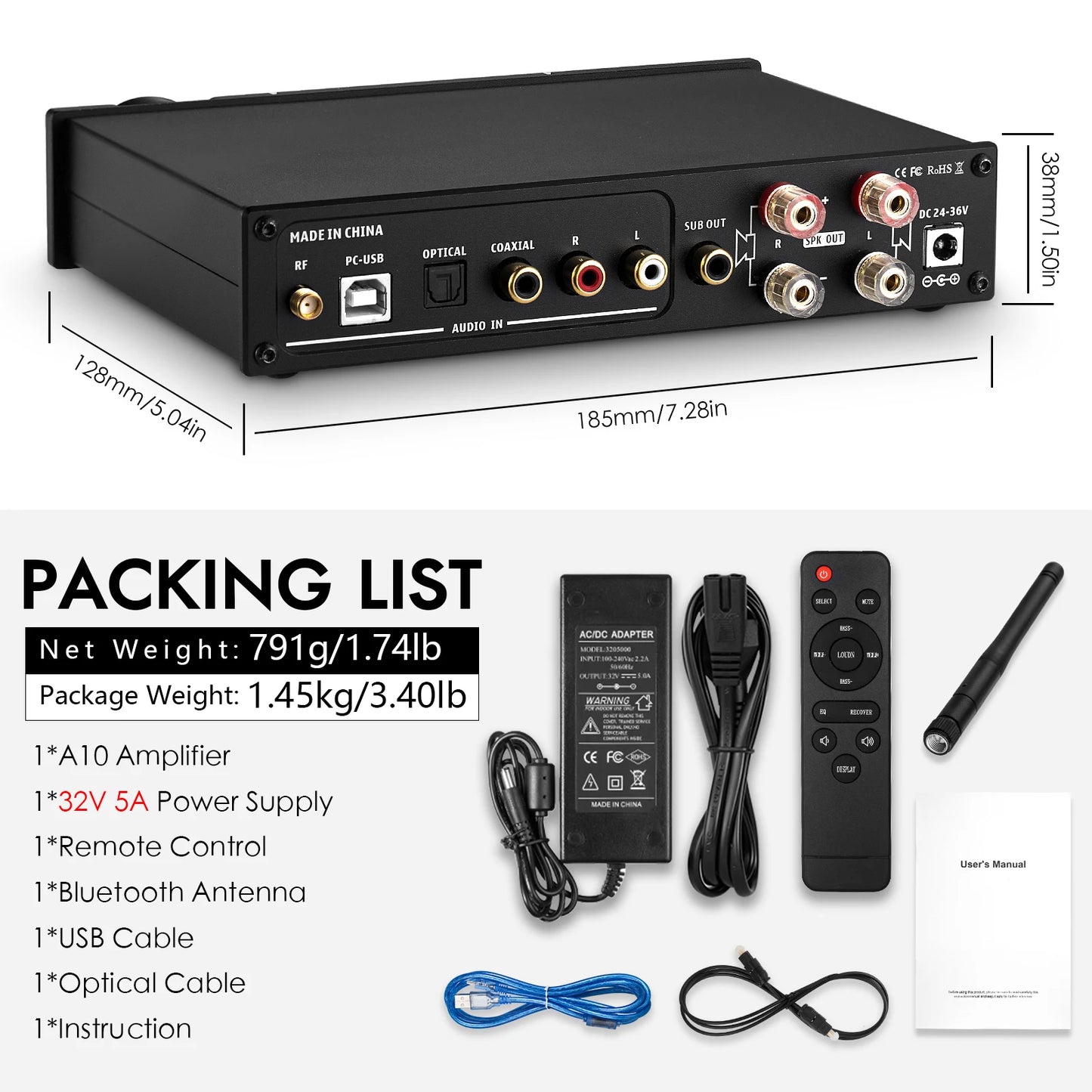

Dimensions(W*D*H): 185*128*38mm / 4.65*6.22*1.46in
Net Weight: 791g / 4.65lb
Package Weight: 1450g / 3.40lb
1*A10 Amplifier
1*Power Supply (32V/5A)
1*USB Cable
1*Optical Cable
1*Remote Control(without battery)
1*Bluetooth Antenna
1*Manual
