Fosi Audio Q4 Mini Stereo USB Gaming DAC & Headphone Amplifier Audio Converter Adapter for Home/Desktop Powered/Active Speakers

Fosi Audio Q4 Mini Stereo USB Gaming DAC & Headphone Amplifier Audio Converter Adapter for Home/Desktop Powered/Active Speakers

Regular price $54.72 USD
Regular price $0.00 USD Sale price $54.72 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From
Quantity

SPECIFICATIONS

Amp Output Maximum Power: 125mW/32Ohm

Brand Name: Fosi Audio

Certification: CE

Channels: 2 (2.0)

DAC Chippest: MS8412

Headphone Chippest: 97220

High-concerned chemical: None

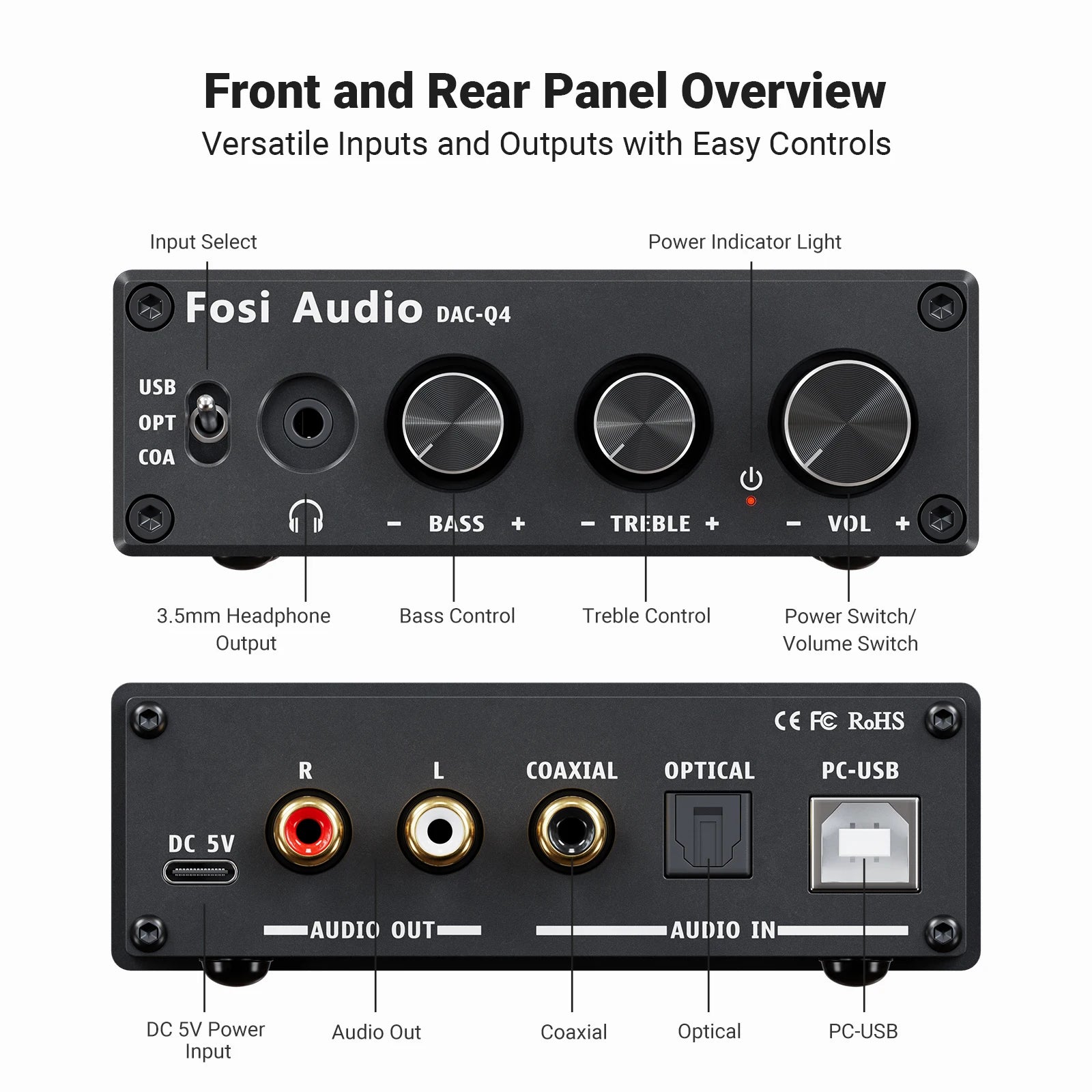

Input: USB, OPT, COA

Maximum Power Per Channel: NO POWER

Model Number: Q4

OPM Chippest: NE5532

Origin: Mainland China

Output: RCA, 3.5mm Headphone Jack

Package: Yes

Supported Headphone Impedance: 16Ω-200Ω

USB Chippest: SA9023

Work Voltage: DC 5V

distortion rate: 0.01%

frequency response: 20 Hz - 20 kHz



Fosi Audio Q4 - Mini Stereo USB Gaming DAC & Headphone Amplifier Audio Converter Adapter for Home/Desktop Powered/Active Speakers


Notice: If you choose to ship from the Brazil warehouse, Aliexpress currently does not offer the option of collecting and paying ICMS fees on behalf of the buyer. If it is found later by the tax authorities that ICMS fees need to be paid, the buyer is responsible for paying them, and the seller will not bear the responsibility. if you mind to pay 18% of the ICMS fee, please choose to ship from China, thank you for your understanding!


Features:


  • Easy to set up, no special software, app, or driver to install, a true plug-and-play digital audio adapter.

  • You will get neutral sound when you adjust the EQ to 12 o'clock position.

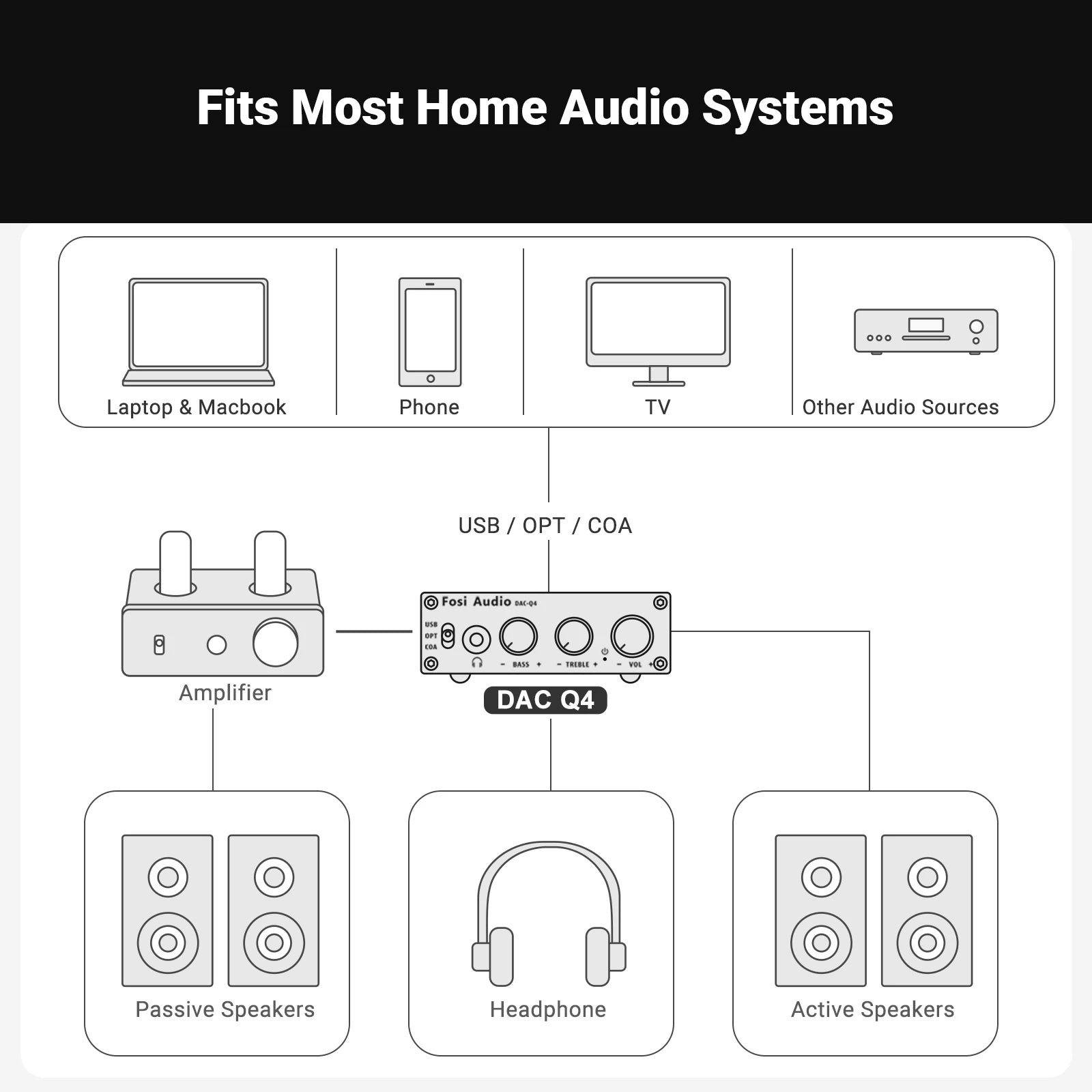

  • With USB, optical and coaxial S/PDIF inputs can fit with most home audio system, and RCA output can be connected to amplifier or powered speakers on your desktop; Built-in Hi-Fi headphone amp chip can drive most 16ohm to 200ohm headphones

  • 160mW RMS(32 ohms, 20 Hz - 20 KHz, 0.01% THD), with bass and treble control can be used as preamp or volume controller for your PC/MAC/Computer

  • Mini Compact D/A converter, stream bit-perfect 24bit/192KHz HD with low jitter, with output protect circuit, safe for your expensive audio system

  • We offer 24-month warranty, and friendly customer service!


Highlight:


  • Model: Q4

  • Color: Black

  • DAC Chippest : MS8412

  • USB Chippest: SA9023

  • Headphone Chippest : 97220

  • OPM Chippest: NE5532

  • PC-USB supports input sampling rate: 96K/24Bit

  • High and low sound adjustment range: ±6dB

  • Fiber/coaxial support input sampling rate: 192K/24Bit

  • Frequency response: 20Hz-20kHz (±3dB)

  • PC-USB support operating system: XP/W7/W8/W10/MAC/linux

  • Distortion: 0.01%; SNR: ≥105dB

  • Amp output maximum power: 125mW 32Ω load

  • Headphone matching impedance: 16-200Ω

  • Working voltage: DC5V; RCA output level: 2.3V

  • Size (L*W*H): 73.5*98*33MM (without knobs and terminals)

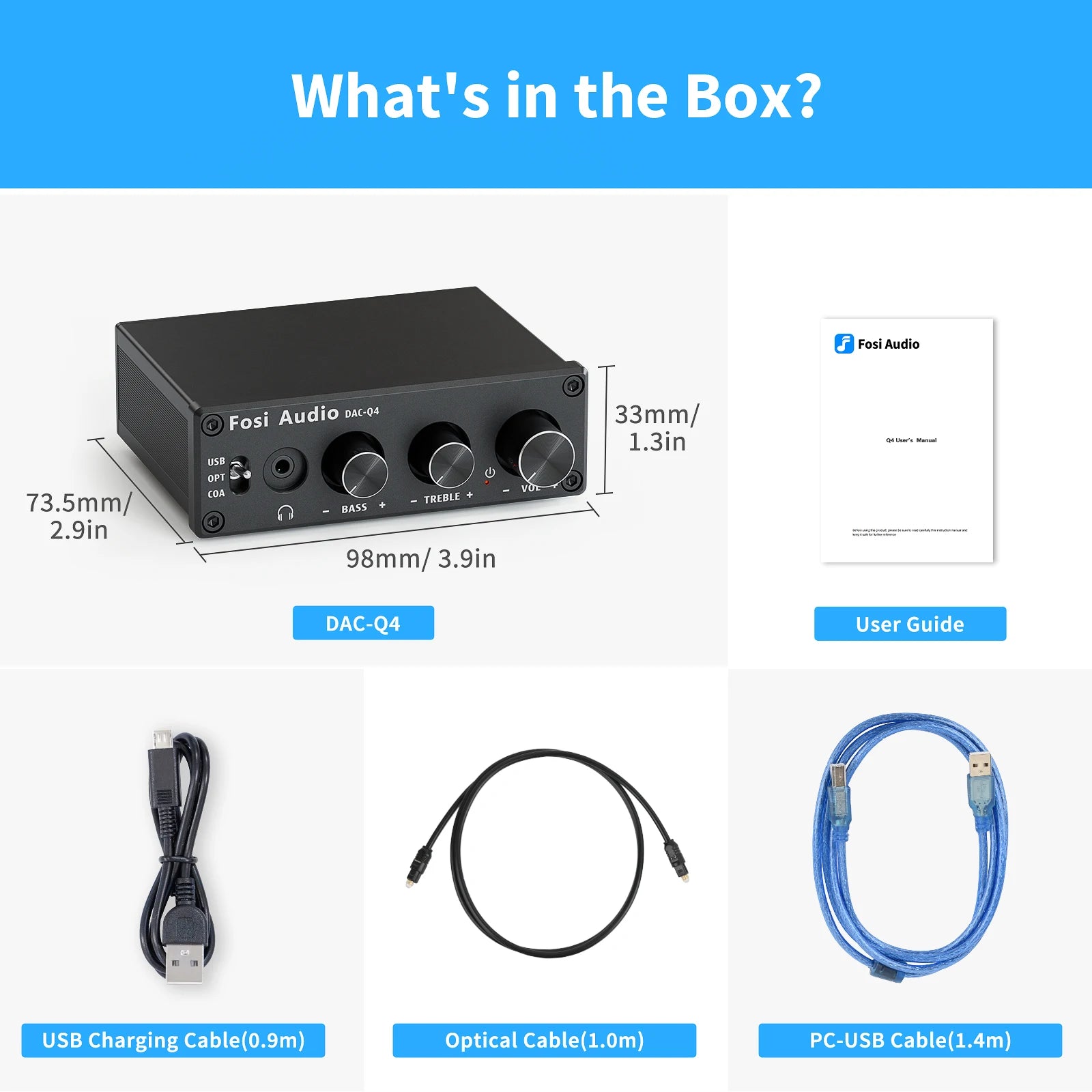

Package Include:


  • *1x Fosi Audio DAC-Q4

  • *1x 5V USB Power Supply Cable

  • *1x PC-USB Cable

  • *1x Optical Cable

  • *1x User’s Manual
