Feature

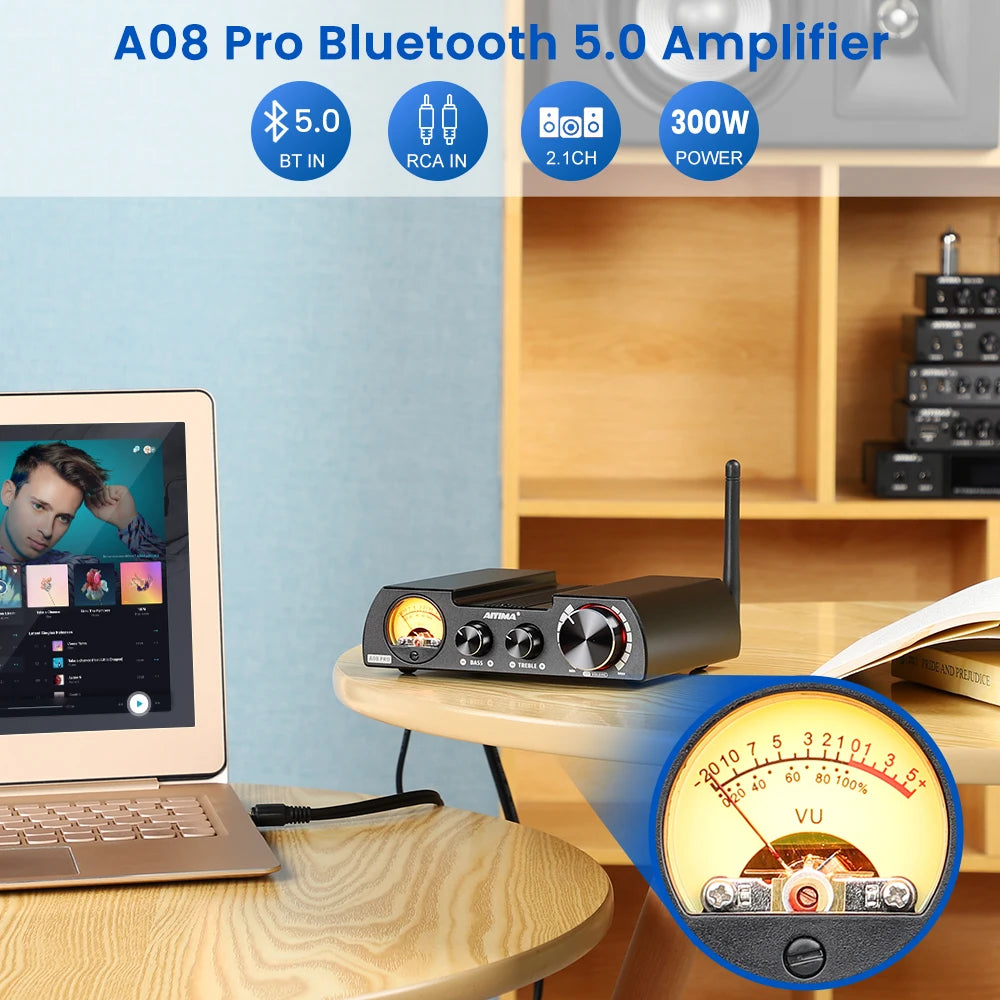

Unique and amazing combination: integrated A8 Pro amplifier with VU meter into whole in such a mini size, when enjoy HiFi music, the pointer dancing in the warm light with strong vintage feelings, dynamically decorates the audio system space.

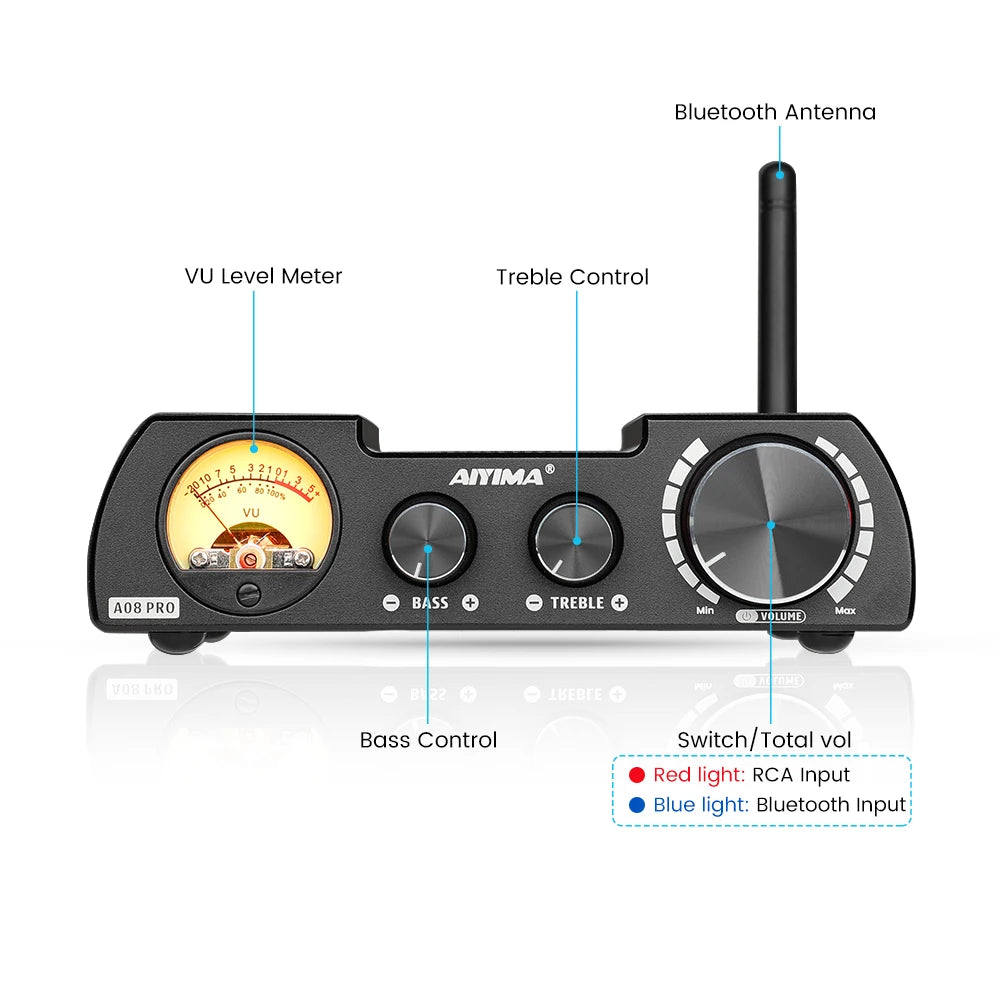

HiFi clear sound with tone control: resonable circuit and concise wiring,sounds warm and sweet without noise. Also with treble and bass knobs to adjust one's own preferable sound styles, presents HiFi music with rousing highs and deep lows.

Strong output power and low frequency output: Adopted TPA3255 Chip,each channel can output 300W(4Ω), match perfectly and easily to drive all 3-8Ω passive speakers, adds a low frequency output easy to connect active speakers and build 2.1 channel system, the bass effects is greatly enhanced.

Bluetooth 5.0 Audio Wireless HD transmission: Adopt Qualcomm QCC5125 Chip,wireless music streaming technology with external antenna make a transmission distance of 10m,Support SBC\AAC\APTX\APTX-LL\APTX-HD\LDAC

Practical funtions to simplify use:aluminum alloy case is specially designed, cool and unique to decorate your desktop space.

Basic Parameters:

Chipset: TPA3255+QCC5125+CS4344+NE5532P+CD4052

Bluetooth chip: QCC5125 Version: 5.0

Supported protocols: SBC\AAC\APTX\APTX-LL\APTX-HD\LDAC

Signal to noise ratio: ≥104db

Input sensitivity: 0.775V

Frequency response: 20-20Khz (±1db)

Speaker impedance: 4-8Ω (left and right channels)

High and low pitch: ±6db

Output power: 300W*2 (4Ω load)

Input mode: RCA/Bluetooth

Audio input supported equipment: mobile phone, tablet, computer, MP3, TV, etc.

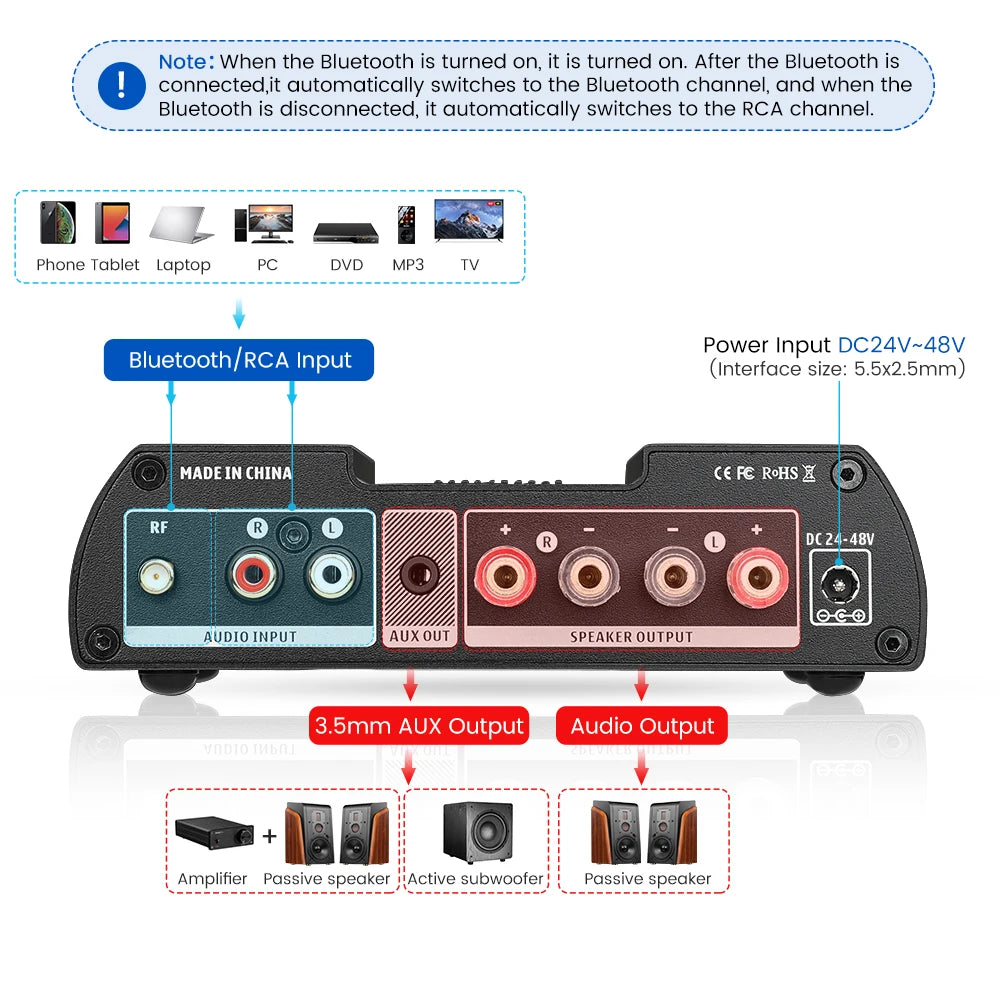

Output mode: RCA (connect with passive speakers), AUX (can be connected to active speakers, active subwoofers, power amplifiers, etc.)

Working power supply: DC 24-48V(Current is 5A or more)

Size: length 123* width 152* height 40mm (excluding knobs and protruding parts)

Product net weight: 686g (amplifier without accessories)

Package included:

1*A8 pro amplifier

1*bluetooth antenna

1*Manual

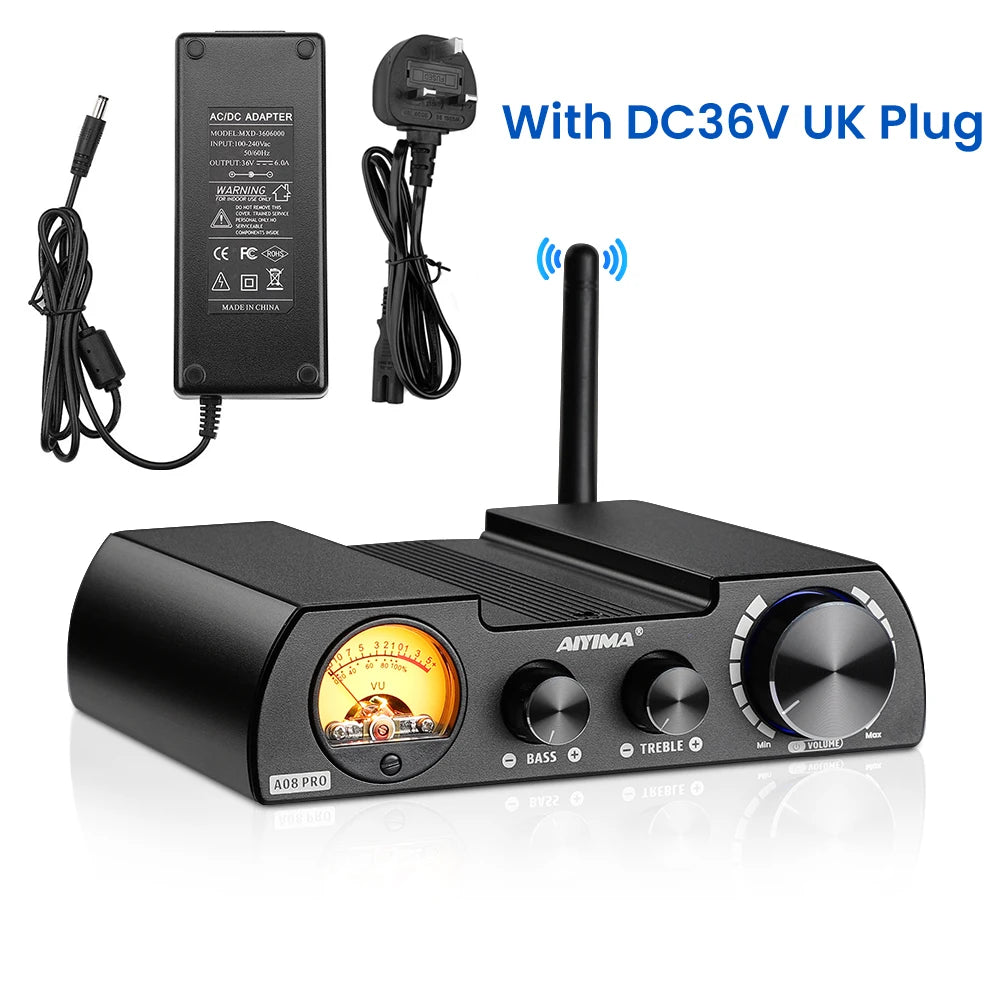

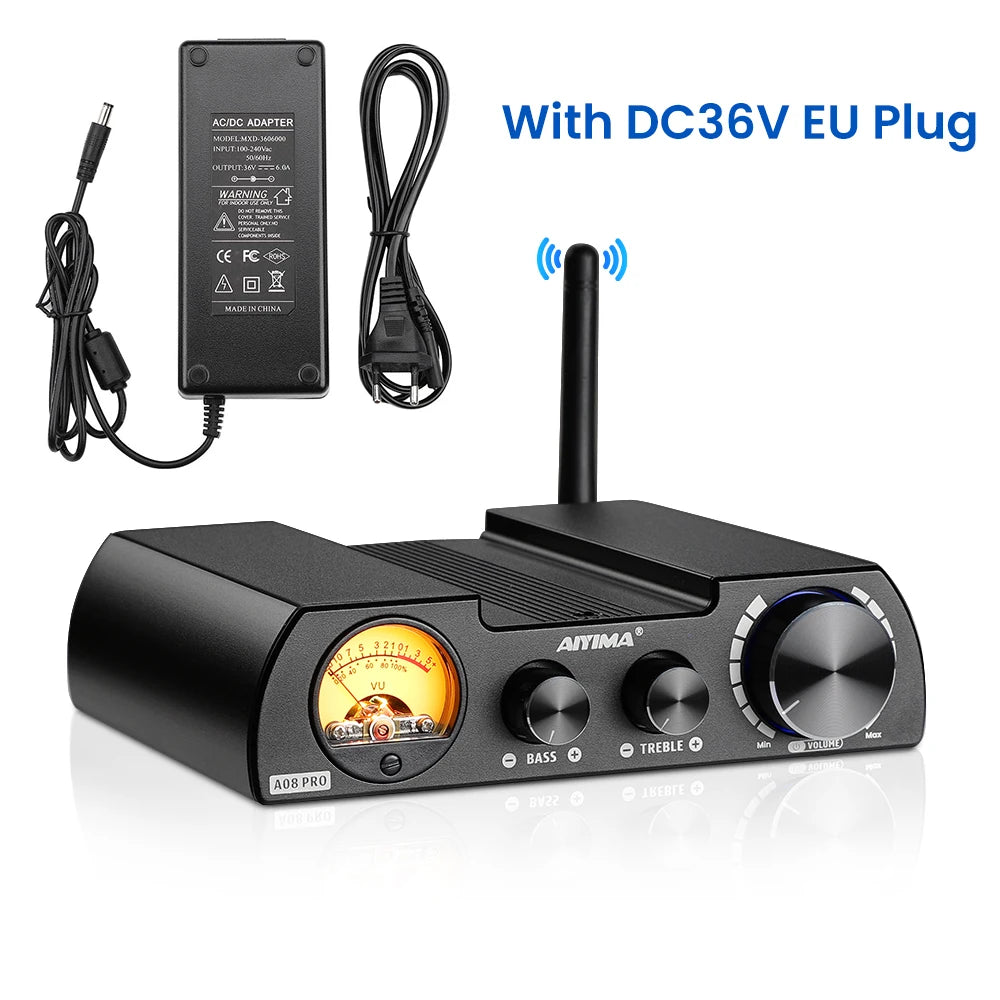

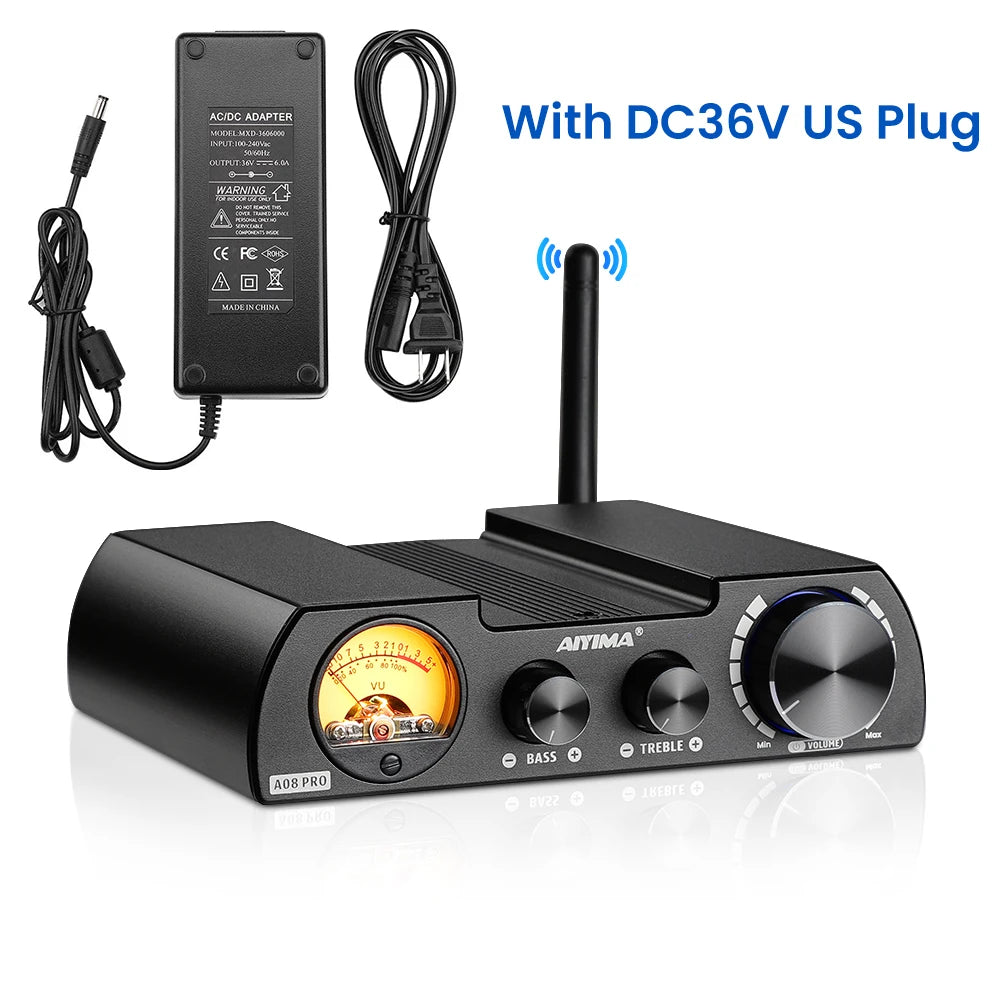

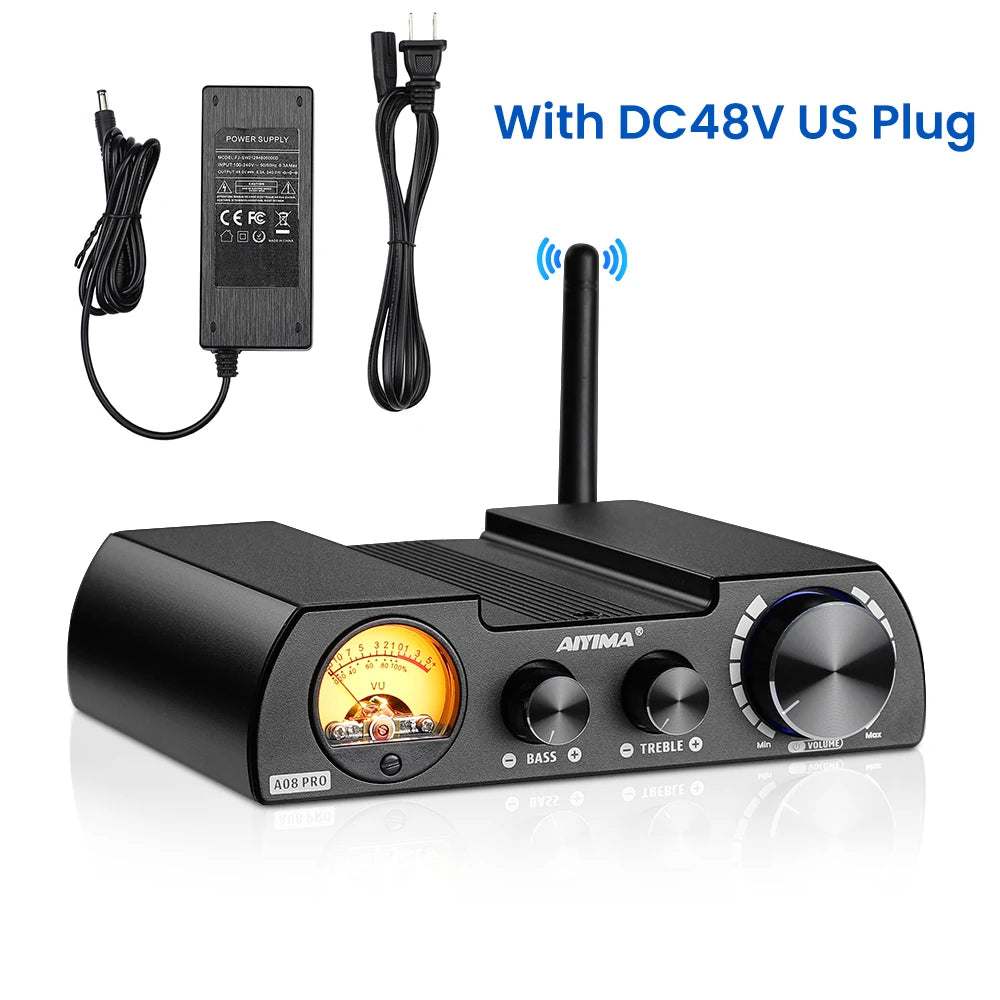

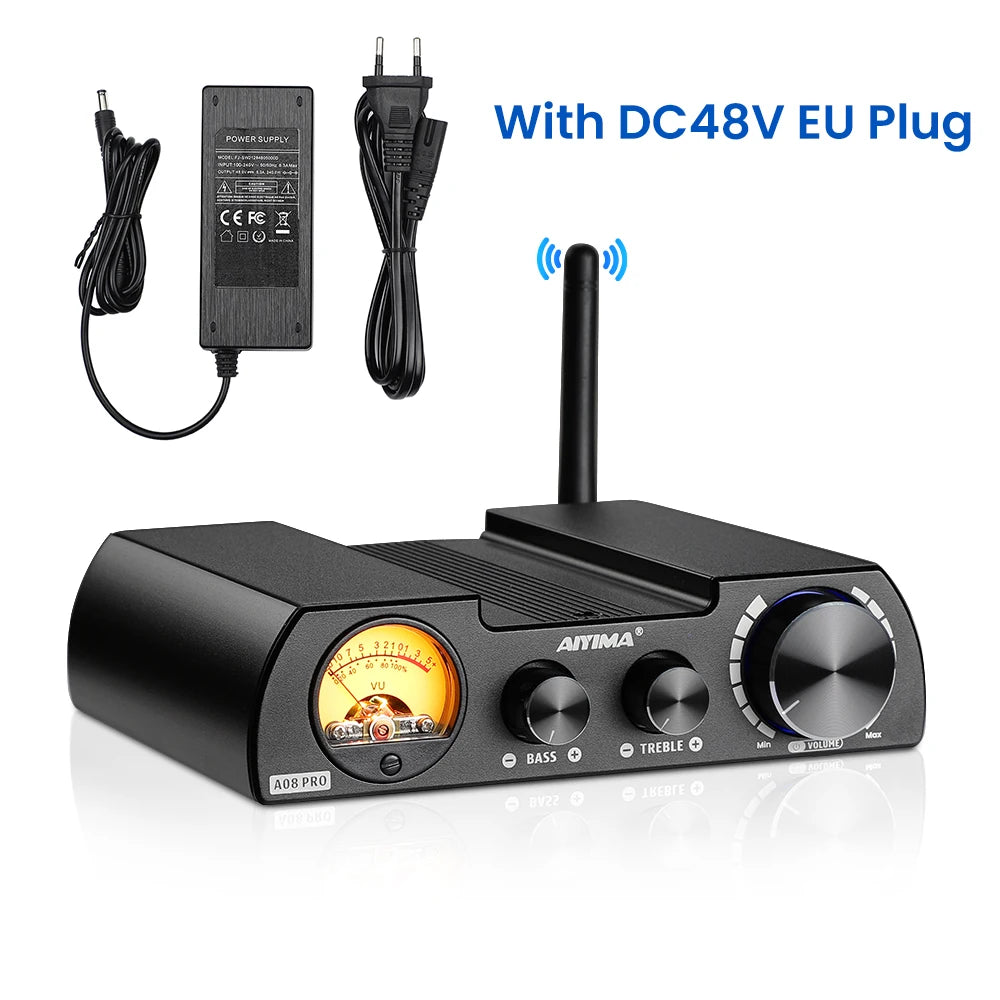

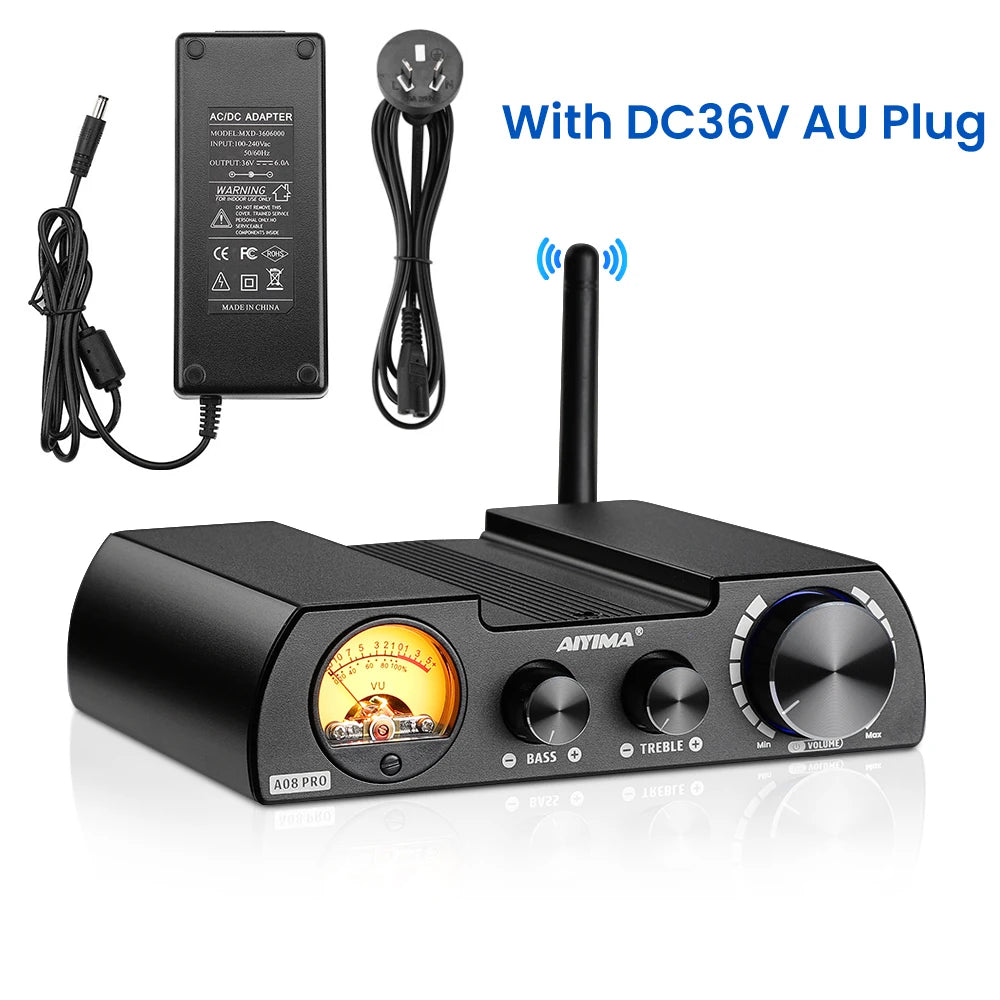

1*Power adapter(it's optional)
